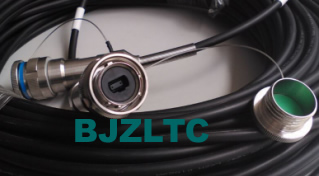

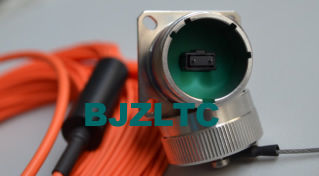

D38999 MTP Tactical Connector

General Information:

D38999 MPO/MTP outdoor waterproof optical fiber connector with J599 shell and MPO/MTP optical fiber connector, joints with three thread fast connection, and adapt with Five keys locate at the same time, blind insertion and error proofing in and anti vibration function, connector made of stainless steel 316L material, contact parts of high density, anti electromagnetic shielding function, fiber optic assemblies detachable, convenient installation, small connector loss, high reliability, is waterproof, dustproof, anti - corrosive characteristics. Mainly used for: marine equipment communications, airborne equipment, acid and alkali, hydrochloric acid, wet and other harsh environment, military communications and outdoor adverse environmental communications.

D38999 MTP Series connector can provide 2-24C fiber connection, also available for 4fiber & 2 power Connection.


Applications:

  • ● Marine ship equipment Communication
  • ●Airborne
  • ● Acid, hydrochloric acid, humidity and other harsh environments
  • ●Tactical Communication & Outdoor Harsh Enivorment Application

Features:

  • ●Industrial standard:Q/21EJ1305 connector size comply with GJB599A standard.
  • ●(MIL-DTL-38999)Ⅲ,performance meet with ARINC801 standard.
  • ● five key location, there are blind mating and error proofing interpolation function
  • ●Thread the locking mechanism can ensure long-term reliable connection
  • ● With adapter socket (optional hermetic seal) form, get rid of the shackles of cable
  • ●Sealed design, waterproof, dustproof, anti-seawater corrosion
  • ●Wall seal design
  • ●The shell material is SUS316L

  • Parameters


    Project Deatil Description
    Optical Insertion Loss 9/125: 0.75 dBmax, 0.35 dBtyp 62.5/25: 0.75 dBmax, 0.14 dBtyp
    Return Loss  >30 dB MMF, >40 dB SMF with PC polish
    Mating Durability  2000 cycles per EIA-455-21
    Vibration  10 g’s per EIA-455-11
    Physical Shock per EIA-455-14, test condition A
    Thermal Shock  -62°C to +85°C per EIA-455-71, cond. B
    Temperature Life  250 hours at 85°C per EIA-455-4
    Corrosion Resistance  EIA-455-16, test condition C
    Humidity 10 cycles per EIA-455-5
    Fluid Immersion 1 meter, per EIA-455-12
    Crush Resistance 450 lbs, per EIA-455-26
    Cable Retention  400 lbs, per EIA-455-6
    Cable Seal Flexing Per EIA-455-1


    D38999 A8 Tactical Connector Structure Drawing & Cable Parameters
