SMA/ST/FC/SC Plastic Fiber Connector
General Information:
Plastic Fiber series connector mainly used in low-speed, short-distance transport, in the industrial control field bus systems and Internet development prospects, with high-bandwidth transmission, anti-jamming performance, signal stability and other advantages.
Applications:
-
●Data transmission and industrial automation and control bus system
-
●Intelligent systems and industrial robot servo system
-
●Communication switching system
-
●Digital multimedia systems
-
●Medical sensing system
-
●Power systems
Features
-
●Anti-electromagnetic interference and electromagnetic radiation
-
●Good flexibility, anti-vibration, to ensure that in any case the zero error rate transmission
-
●High temperature and low temperature (-40 to 70 degrees Celsius)
-
●Easy to install, no maintenance
-
●Plastic optical fiber is not conductive, the power transmission line 3 can share the power supply distance
With Agilent universal connection system
-
●Compliance with international standards (EIA / TIA 569, CENELEC EN 50174-2)
Parameter
| Subject |
Parameters |
| Fiber O.D. |
1mm |
| Outer O.D. |
Φ1.0/2.2mm |
| Fiber |
PMMA |
| Wavelength |
650nm |
| Attenuation |
<0.19 |
| Bending Radius |
5 times |
| Connector IL |
<0.5db |
| Numerical Aperture |
0.47 |
| Tensile Strength |
27kg |
| Operation Lowest Temp. |
-40℃ |
| Operation Highest Temp. |
70℃ |
| Transmission Delay |
5ns/m |

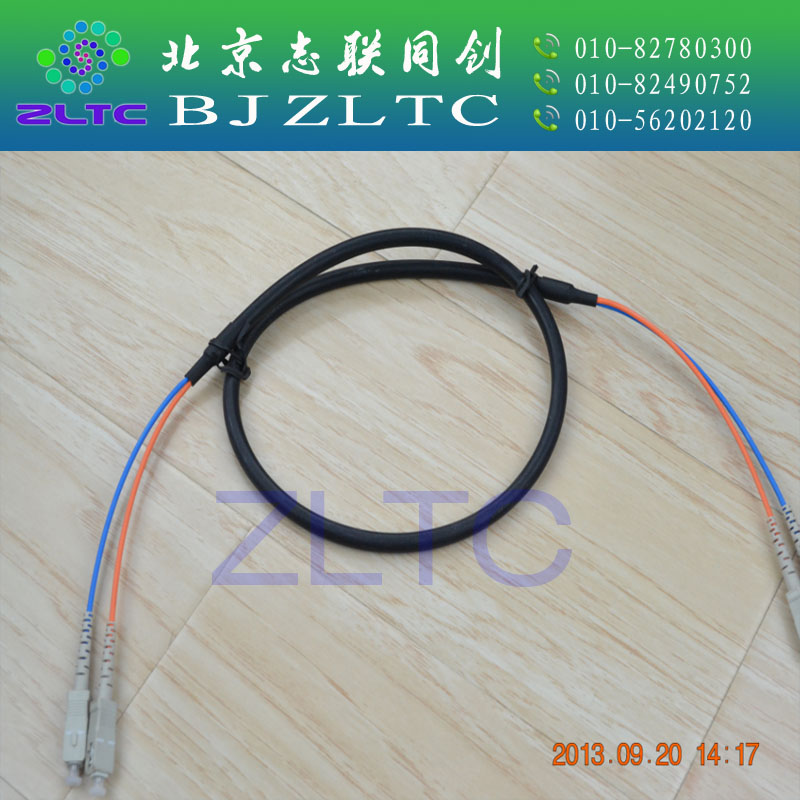

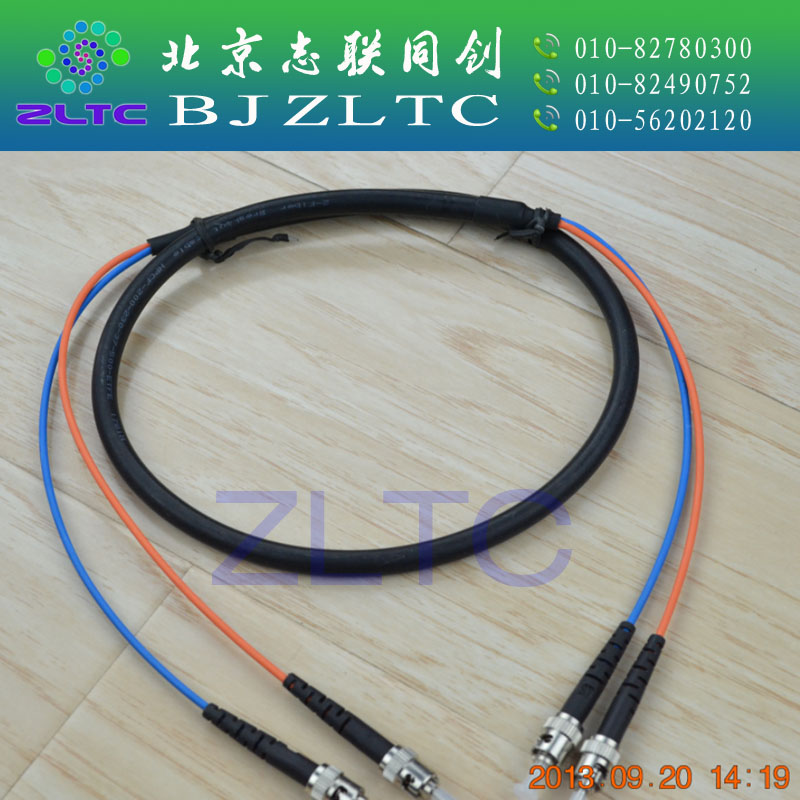

Terminal Products Pics
