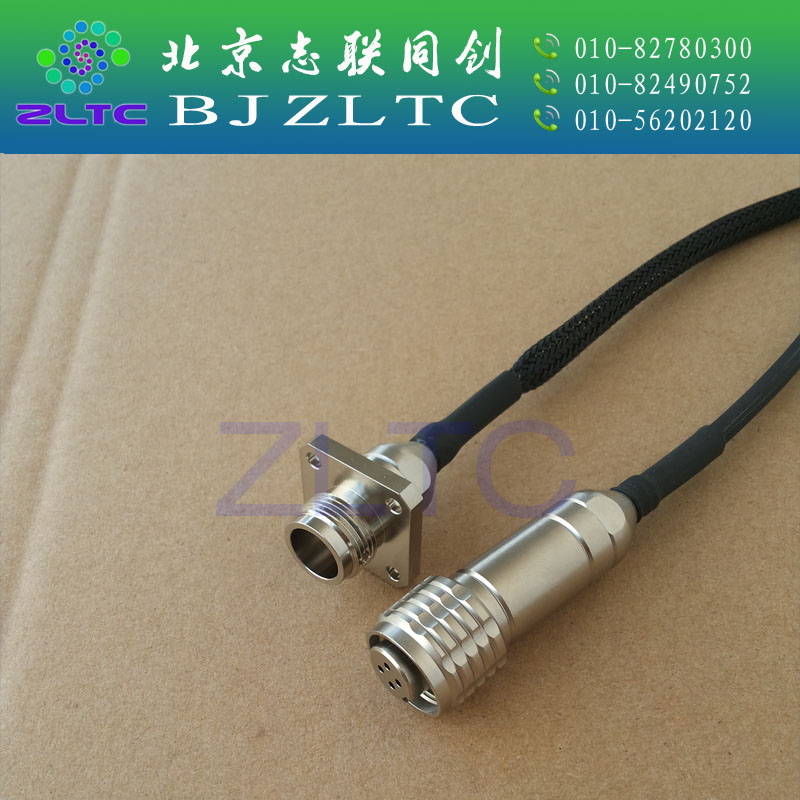

ODC 2Cores & 4Cores Connector
General Information:
ODC outdoor waterproof connector with screw locking mechanism to ensure safe and reliable connection, the design guide pins, you can use one hand blind mating connector installation simple and quick to do. Products reach the level of protection IP67 waterproof, waterproof, dust protection and anti-corrosion protection can be well suited for outdoor use environments.
Features
-
● Thread the locking mechanism can ensure long-term reliable connection
-
●Guiding mechanism, you can use one hand blind plug, connection quickly and easily install
-
●Seal Design: waterproof, dustproof, anti-corrosion and other characteristics
-
●Compact, easy to operate, durable
-
●Wall seal design
-
●Reduce welding, can be plugged directly interconnected
Parameters
| Title | Description |
|---|---|
| Optical Insertion Loss | 2～4C≤0.7dB 6～8C≤1.0dB 12～24C≤1.5dB, ≤1.0dB (MM) |
| Return Loss | >30 dB MMF, >50 dB SMF with PC polish |
| Mating Durability | 2000 cycles per EIA-455-21 |
| Plug | ≤500N (Main Cable) |
| Socket | ≤30N (Branch Cable) |
| Operation Temp. | -40℃～85℃ |
| Temperature Life | 250 hours at 85°C per EIA-455-4 |
| Corrosion Resistance | EIA-455-16, test condition C |
| Humidity | 10 cycles per EIA-455-5 |
| Proection Class | IP67 |
| Standard | Comply With RoHS |
Drawing
