Remote Base Station Optical Cable
General Information:
Remote base stations communicate optical cable, with ODC Series fiber optic connectors, commonly used in remote base stations connected to the engine room equipment, intelligent substation, etc.
Features:
-
●Wiring compact all-dielectric structure, within Ф0.9mm tight buffered fiber, the cable has a high strength-weight ratio, allowing for quick wiring;
-
●Ensure a large area of aramid reinforced fiber optic cable provides a high mechanical strength;
-
● SZ stranding pitch a few small tight buffered fiber and single-stranded helix of aramid fibers combined to ensure the cable has greater tensile strain capacity;
-
● Outer sheath LSZH materials, environmental protection, in line with EU RoHs Directive;
Parameters
| Title | Description |
|---|---|
| Optical Insertion Loss | 9/125: 0.75 dBmax, 0.35 dBtyp 62.5/25: 0.75 dBmax, 0.14 dBtyp |
| Return Loss | >30 dB MMF, >40 dB SMF with PC polish |
| Mating Durability | 2000 cycles per EIA-455-21 |
| Vibration | 10 g’s per EIA-455-11 |
| Physical Shock | per EIA-455-14, test condition A |
| Thermal Shock | -62°C to +85°C per EIA-455-71, cond. B |
| Temperature Life | 250 hours at 85°C per EIA-455-4 |
| Corrosion Resistance | EIA-455-16, test condition C |
| Humidity | 10 cycles per EIA-455-5 |
| Fluid Immersion | 1 meter, per EIA-455-12 |
| Crush Resistance | 450 lbs, per EIA-455-26 |
| Cable Retention | 400 lbs, per EIA-455-6 |
| Cable Seal Flexing | Per EIA-455-1 |
| Impact | EIA-455-2 |

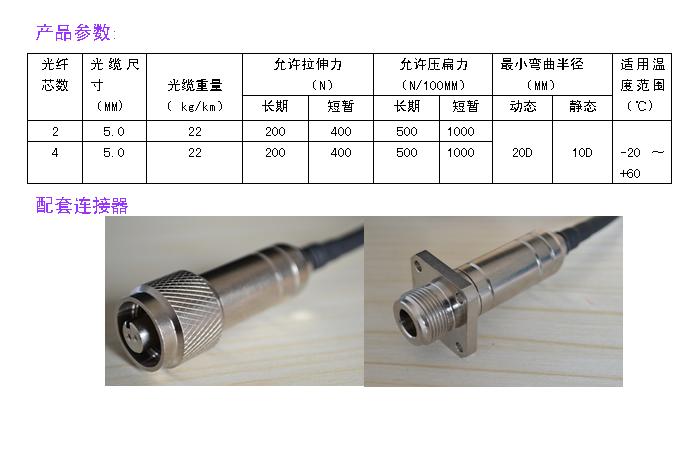

Specifications
