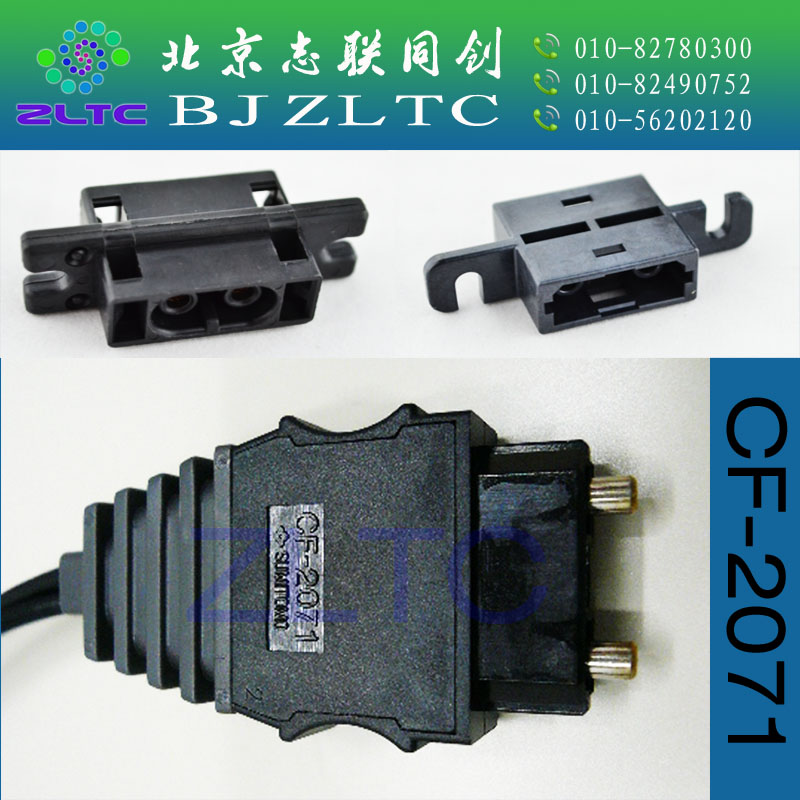

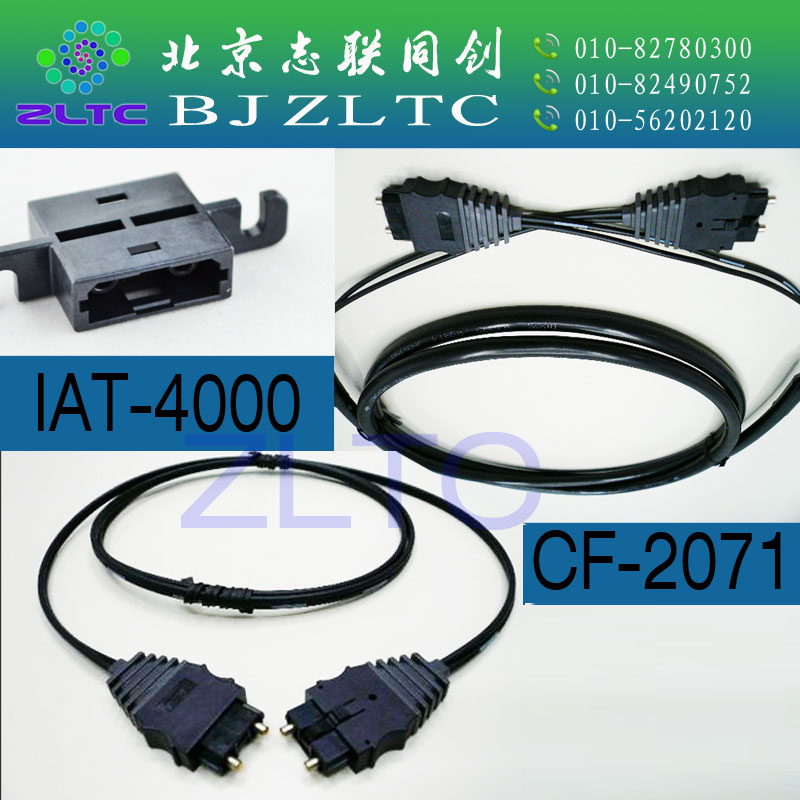

CF-2071 Connector



General Information:

HPCF ideally suited for use with both 650nm and 850nm active devices. Large core with 200μm-600μm diameter gives a good coupling efficiency for data links or connections. Systems with large core fiber have overall lower coat due to the loose tolerance requirement of the components.  HPCF shows the best performance when it applied to short to Intermediate, a few hundreds to thousands feet, fiber optic data transmission.
We owned the professional on-site installation and testing tools can provide users with efficient and convenient on-site installation fitting service.


Applications:

  • ●CF-2071

Features:

  • Quick-connect plug self-locking system, insertion loss ≤ 0.1dB
  • Fiber core needle cleaning easy
  • Resistant to high temperature, operating temperature range -40 ℃ to +80 ℃

CF-2071 Structure Drawing & Cable Parameters


CF-2071ME Application


On site Tools & Testing Tools
