Tactical Cable Connector YZB

General Information:

 Designed for military field fiber optic cable supporting, neutral bayonet locking structure can be realized head and seat, head and head, seat and seat fast any connection. With multi-core once connected and blind insertion; connection loss, high reliability; rugged, waterproof, dustproof, resistance to harsh environments, etc., can be used in a variety of optical fiber communication network field army, military computer systems, airborne or ship borne equipment, repair and other outdoor optical cable system temporary connection. Product specifications are: 2 core, 4 core, 6-core, 8-core, 12 core. Products are mainly used for: military emergency communications, broadcast television, emergency rush through optical fiber communications, mining, oil and so on.


Applications:

  • Tactical Communication Connection
  • Oil, Mine Communication Connection
  • Remote Wireless Base Station
  • CCTV System
  • Fiber Sensor
  • Railway signal Control Application
  • Intelligent Power Station Communication

Parameters


Subject Parameters
IL(SM) ≤0.8dB
IL(MM) ≤0.5dB
RL(SM) ≥50dB
Plug ≤500N(Main Cable)
Socket ≤100N(Branch Cable)
Operation Tem. -40℃~85℃
IP Class IP67
RHOS Comply with RHoS

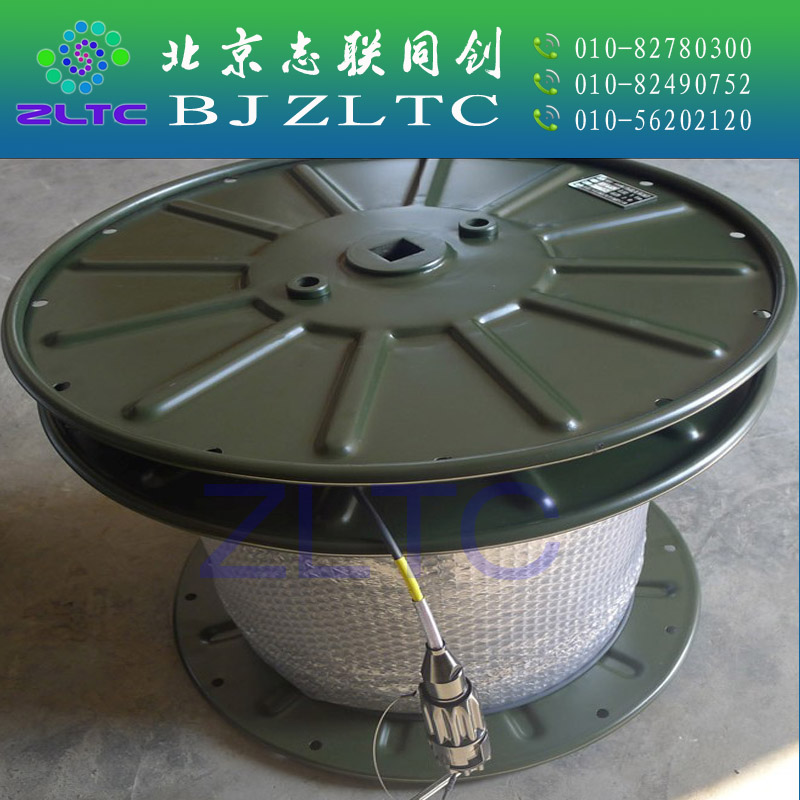

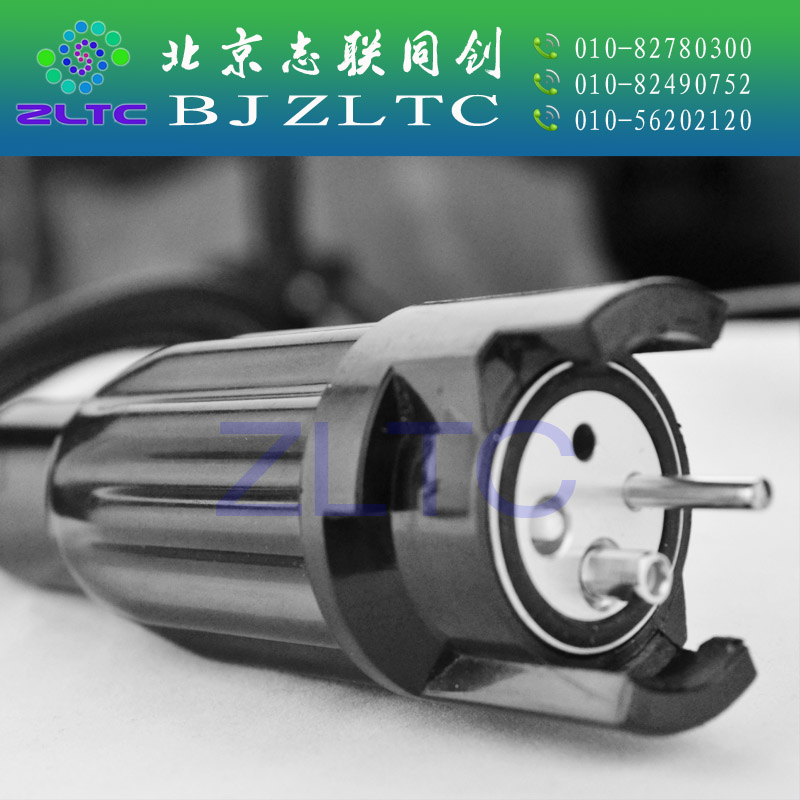

Products Pics
